Gas rotary isobaric filling machine

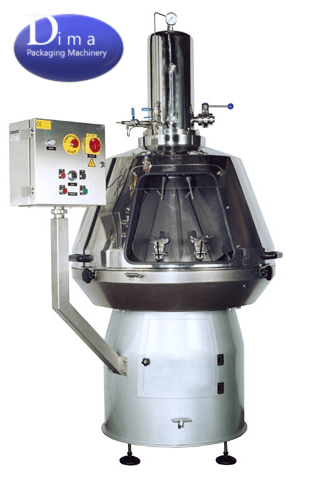

Rotary Isobaric Filler

The isobaric filler is used in the bottling of sparkling wines, sparkling wines, carbonated drinks, beer and mineral waters.
It is a simple and robust machine, which allows bottles to be filled, even at high pressure, without causing foam, thanks to particular systems that prevent its formation.
The central distribution group and all the parts in contact with the product are made of AISI 304 stainless steel, the base is made of enameled iron and the rods and the plates under the bottle are made of chrome-plated brass.
On request machines can be built entirely in stainless steel.
FEATURES:
→Glass bottles can be filled from 200 cc to 2 liters, and PET bottles by adding the appropriate optional accessories.
→The replacement of the various sizes of bottles is done quickly by moving the bottle holder plate, which is only hooked to a toothed rod.
→The operator manually carries out the bottle loading and unloading operations, while all the filling phases occur automatically during rotation.
→The machine has an inverter to vary the speed in order to adapt the hourly production according to the size of the bottle, the type of product and the working pressure.
→In the event of a bottle bursting, the release of product and pressure is instantly interrupted.
→Sturdy frames and explosion-proof protections between one glass and the other, made of stainless steel, guarantee the operator maximum safety.
→The central movement is mounted on robust roller bearings lubricated in an oil bath, in a sealed box.
