Gravity filler for magnum bottles

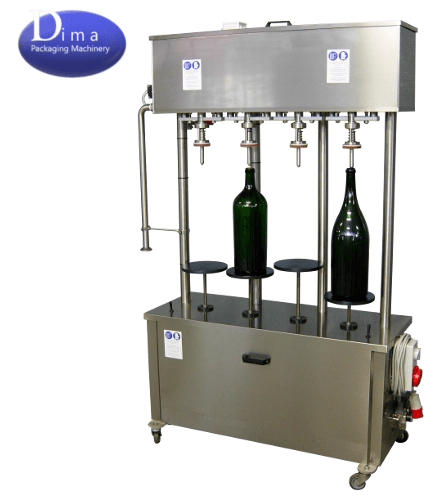

Gravity Filler for Magnum Bottles
Semi-automatic filler for "magnum" type bottles, small in size and mounted on wheels for easy movement; It is entirely made of AISI 304 steel.
Linear filler with 2 or 4 siphons for gravity filling, pneumatic bottle lifting with height-adjustable trays. Stainless steel liquid inlet solenoid valve controlled by level probes.
FEATURES :
Semi-automatic filler for "magnum" type bottles
→The diameter of the taps is 22 mm.
→Electric panel for machine management and protections in accordance with CE standards, predisposed with a pump socket.
→Possibility of corking "magnum" bottles from 3 to 6 litres.
→Electric and pneumatic supply.
Weight: Kg. 300
Height: 1600mm.
Width: 1300mm.
Depth: 600mm.
