Automatic rotary filling and packaging machine

Automatic Rotary Filler - Packaging Machine with Capper

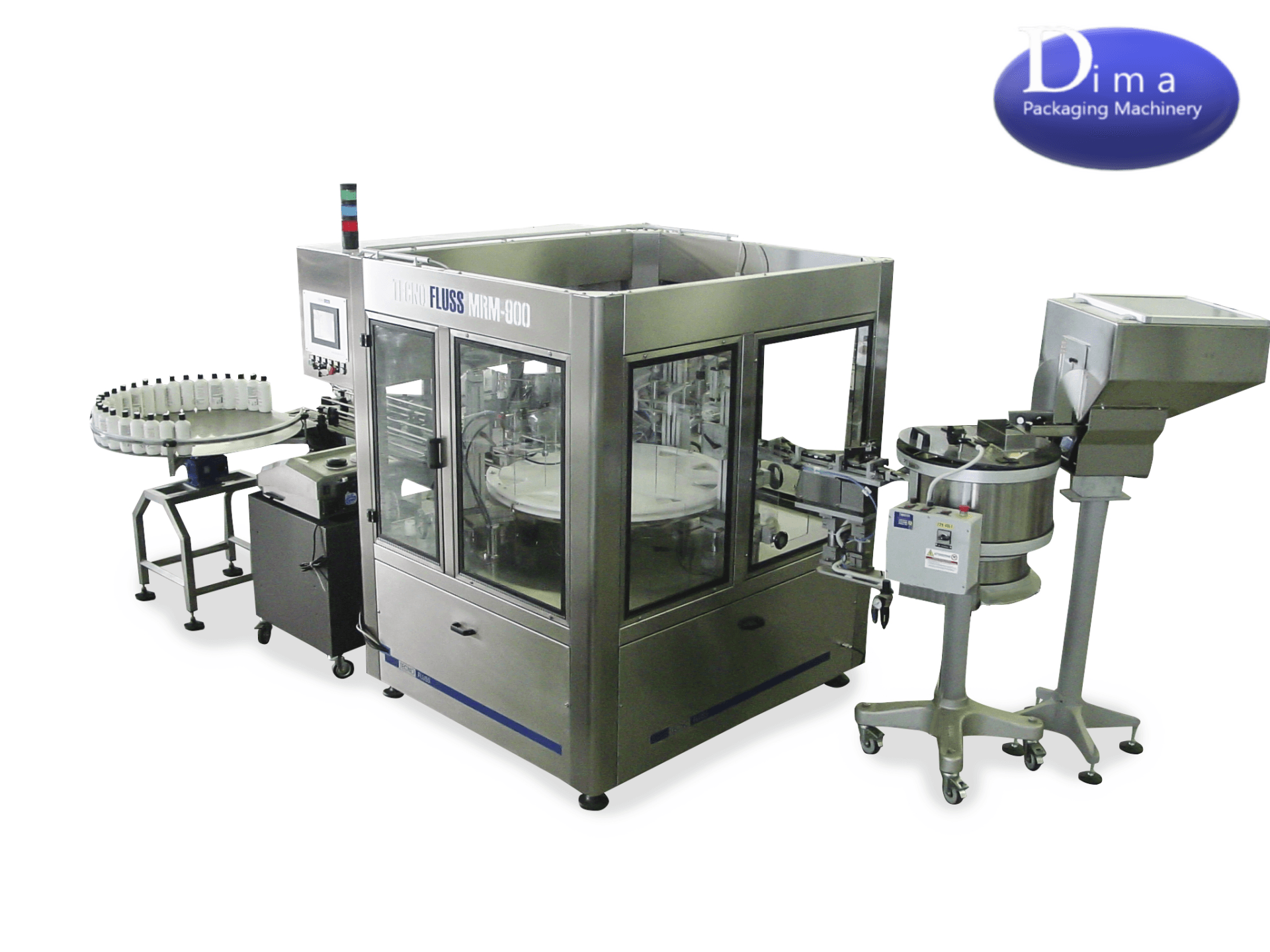

The filling and capping monobloc mod. 900 is suitable for filling jars and cans and for capping with or without capsules, coating caps and lids or plugs.PATENTED MULTIFORMAT machine, select format on screen and automatic change (also available with manual multiformat change (loosen, adjust and ready), without changing formats or tools.
Entirely electro-welded stainless steel construction placed on N°4 adjustable feet.
All the operations of the machine are carried out in a star pattern, suitable for independent operation, equipped with a chain, a return drum and a rectangular accumulation platform with a driving drum. Conforms to CE standards.

FEATURES - COMPONENTS

Capsule Distributor:
silent magnetic orienter for metallic capsules
adjustable downspout for different formats, release head
control device presence of capsules in the duct

Automatic capper:
automatic cork loading
rotation with head on controlled effort clutch,
capping head rotation speed control by means of inverter,
control presence of the container photocell process.

Distribution panel
for machine management
master switch
emergency stop switch
dosage work pause adjustment
IP65 protection

The monobloc 900 can be adapted to the customer's use requirements depending on the product to be made and the type of container with the following accessories:
Filler:
a head for filling liquids made with all parts in contact with AISI 316 stainless steel and non-toxic plastic materials, anti-acid sealing gaskets; with a feed tank for the product to be dosed and an accumulation tank for level fillings.

Pneumatic Volumetric Doser:
Suitable for liquid and dense products, piston made entirely of AISI304 stainless steel with Teflon seals, suitable for food, hot sanitizable.
